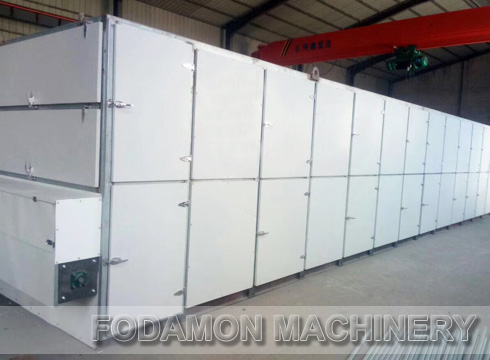

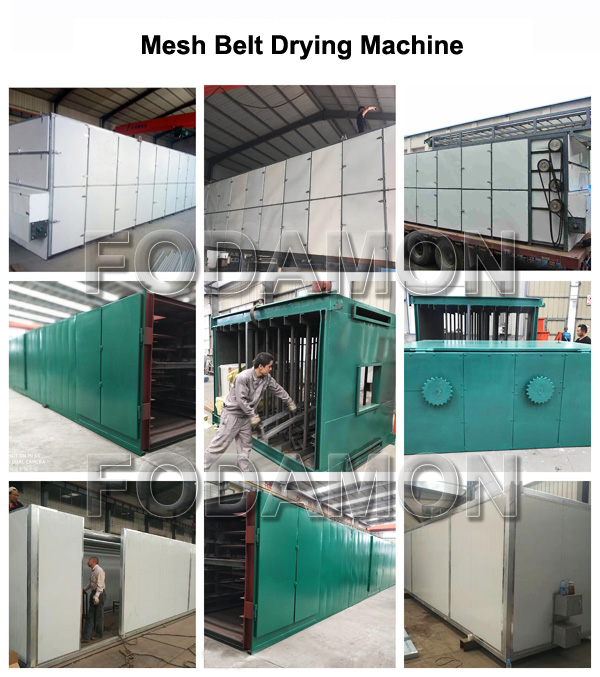

Mesh Belt Conveyor Dryer
Applied materials:
Block, slice, strip, granular and other materials: briquette, animal husbandry, palm silk, hair, shavings, vegetables, food
Applications:
Widely used in chemical, animal husbandry, food, medicine, building materials, electronics and other industries, especially suitable for air permeable sheet, strip, granular materials drying, paste cake materials, also through granulator or extruder molding materials for drying
If you want to learn more about our crusher and beneficiation equipment, Leave a Message!
Mesh belt dryer is a kind of drying equipment for batch and continuous production. The main heating methods are electric heating, steam heating and hot air heating. The main principle is that the material is evenly laid on the mesh belt, the mesh belt uses 12-60 mesh steel wire mesh belt, driven by the transmission device in the dryer to move back and forth, hot air flowing through the material, steam discharged from the dehumidification hole, so as to achieve the purpose of drying, the length of the box is composed of standard section, in order to save space. The dryer can be made into a multi-layer dryer. The common dryers are two rooms, three layers, two rooms and five layers, with a length of 6-40m and an effective width of 0.6-3.0m. Depending on the material to be dried, we have mesh belt dryers for drying briquettes, plants, food, etc.
Working Principle
The mesh belt dryer distributes the material to be processed on the conveyor belt through a suitable paving mechanism, such as a star-shaped distributor, swing belt, crusher or granulator. The conveyor belt passes through a passage composed of one or more heating units. Each heating unit is equipped with an air heating and circulating system. Each passage has one or more heating units. Several dehumidification systems, in the conveyor belt through, hot air from the top down or from the bottom up through the conveyor belt material, so that the material can be evenly dried.
If you want to learn more about our crusher and beneficiation equipment, Leave a Message!
Technical Data
| Model | 202 | 204 | 304 | 306 |
|---|---|---|---|---|
| Effective working length of monolayer (m) | 20 | 20 | 30 | 30 |
| Number of layers (n) | 2 | 4 | 4 | 6 |
| Effective working width (m) | 1.2 | 1.2 | 1.5 | 1.5 |
| Average stacking thickness of materials (mm) | 200 | |||
| Drying capacity(t/h) | 6 | 10 | 15 | 20 |
| Moisture content before drying (%) | 8-12% | 8-12% | 8-12% | 8-12% |
| Moisture content after drying (%) | 1.5-3% | 1.5-3% | 1.5-3% | 1.5-3% |
| Transfer power (kw) | 3 | 3×2 | 5.5×2 | 5.5×3 |
| Hot air temperature requirements (℃) | 180-250 | |||
| Hot air content requirement (kg/kg) | ≤0.01kg/kg Dry air |
Note: This is just reference. Please contact us to get price and details.
