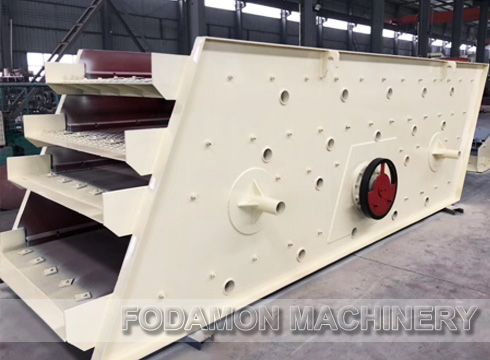

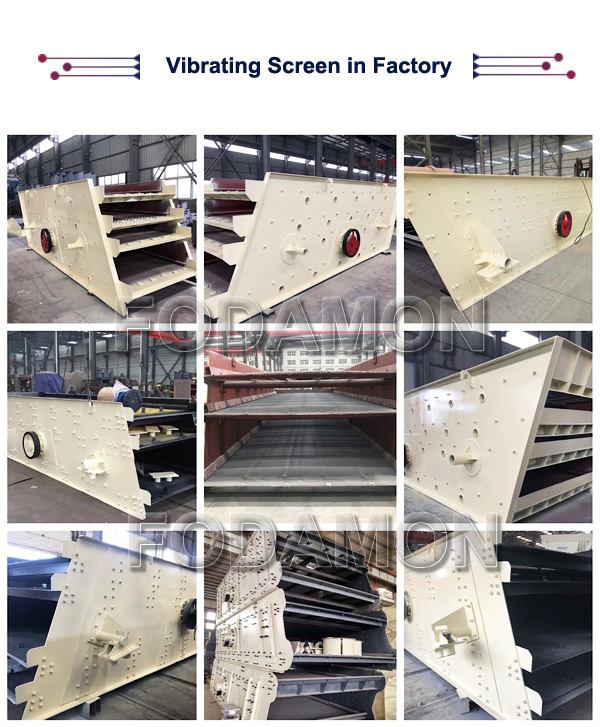

Vibrating Screen
Applied materials: Quartz stone, river pebble, calcite, dolomite, granite, basalt, iron ore, limestone, diabase.
Applications: Sand and gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc.
If you want to learn more about our crusher and beneficiation equipment, Leave a Message!
The circular motion of the vibrating screen is designed for the screening of stones in the quarry, and it can also be used for product grading in the departments of coal mine, mineral processing, building materials, electric power and chemical industry. YK series is a new type of machine in China. The machine adopts eccentric vibration exciter and tire coupling, which has the advantages of advanced structure, strong vibration force, small vibration noise, easy maintenance, firmness and durability.

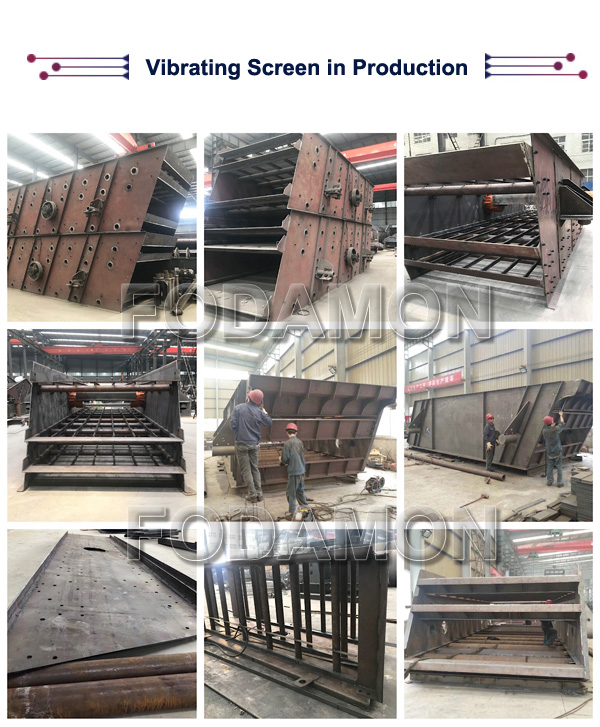

Working Principle of Vibrating Screen
The circular vibrating screen is mainly composed of screen box, vibration exciter, suspension (or support) device and motor, etc. The motor drives the main shaft of the exciter to rotate through the V-belt, and the screen box vibrates due to the centrifugal inertia force of the unbalanced weight on the exciter. Different amplitudes can be obtained by changing the eccentric axis of the exciter.
If you want to learn more about our crusher and beneficiation equipment, Leave a Message!
Technical Parameter of Vibrating Screen
| Model | Sieve layer | Sieve area (m³) | Mesh size (mm) | Max feeding size (mm) | Capacity (m³/h) | Motor power (kw) | Total weight(kg) | Dimensions (LxWxH) (mm) |
|---|---|---|---|---|---|---|---|---|
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 5.5 | 3500 | 2930x1860x870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 5.5 | 3850 | 3070x1860x1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 7.5 | 4200 | 3430x1860x870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 7.5 | 4600 | 3570x1860x1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 7.5 | 4600 | 4050x1860x870 |
| 3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 7.5 | 5200 | 4270x1860x1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 11 | 5890 | 4120x2210x1230 |
| 3YK1535 | 2 | 15.75 | 5-50 | 400 | 21-125 | 11 | 6700 | 4360x2210x1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 15 | 6330 | 5120x2210x1230 |
| 3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 15 | 6800 | 5360x2210x1610 |
| 4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 18.5 | 7800 | 5930x2210x2060 |
| 2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 15 | 6980 | 5420x2210x1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 15 | 7700 | 5660x2210x1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 18.5 | 8700 | 6230x2210x2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 15 | 9080 | 5420x2550x1420 |
| 3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 18.5 | 9600 | 5660x2550x1780 |
| 4YK1848 | 4 | 34.54 | 5-80 | 400 | 32-285 | 22 | 11100 | 6290x2550x2160 |
| 2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 18.5 | 10150 | 5960x2550x1420 |
| 3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 22 | 10840 | 6260x2550x1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 30 | 12840 | 6830x2550x2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 30 | 11780 | 6720x2840x1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 30 | 12800 | 7030x2840x1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 37 | 14800 | 7300x2840x2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 37 | 15600 | 7020x3140x1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 37 | 17600 | 7300x3140x1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 45 | 19600 | 7600x3140x2380 |
Note:This is just reference. Please contact us to get suitable solution and competitive price.
