Spring Cone Crusher

Spring Cone Crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness. Compared with Jaw Crusher, Spring Cone Crusher is of stable structure, high efficiency, easy adjustment, and economical using etc. The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the Cone Crusher. The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make sure reliable performance. This type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.

If you want to learn more about our crusher and beneficiation equipment, Leave a Message!

Introduction of Spring Cone Crusher
Introduction of Spring Cone Crusher

This series of crushers is suitable for crushing all kinds of ores and rocks with medium hardness and above. It has the characteristics of reliable structure, high production efficiency, convenient adjustment and economical use. The spring safety system is an overload protection device, which can make the foreign iron block pass through the crushing chamber without jeopardizing the machine, and adopts two kinds of sealing forms of dry oil or water to isolate the stone powder from the lubrication to ensure reliable operation. This series of crusher is divided into three types: coarse crusher cone crusher, medium crush cone crusher and fine crusher cone crusher. The standard type is suitable for medium crushing, the medium type is suitable for fine crushing, and the short head type is suitable for fine crushing. Can be purchased according to different needs of users.

The spring cone crusher produced by our factory is divided into ordinary spring cone crusher and composite spring cone crusher.

If larger capacity is required in a case of hard stone, the employment of both cone crusher and impact crusher is our usual consideration. Actually, it is just for your reference, the final proposal is subject to terrain situation and other factors.In construction of highway and high-speed railway, the qualified sand aggregate decides the service life and quality safety of these construction projects. Large cone crusher ,spring cone crusher and high efficiency sand making machines are the common-used equipments of construction projects, so it is important to choose suitable and safe sand crushers.

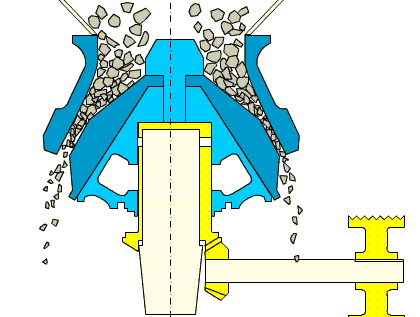

Working Principle of spring cone crusher

During operation, the rotation of the motor is rotated by a pulley or a coupling, a cone crusher drive shaft and a conical crusher cone under a urging of the eccentric sleeve. Therefore, the broken wall of the crushing cone is close to the surface of the shackle wall fixed on the adjusting sleeve, so that the ore is continuously subjected to impact, pressing and bending in the crushing chamber to realize the crushing of the ore.


1. High capacity and good quality;
2. Long life for quick-wear parts, and low investment cost;
3. Dilute petrol stations for continuous lubrication to reduce downtime maintenance time.

If you want to learn more about our crusher and beneficiation equipment, Leave a Message!

ModelDiameter of moving cone(mm)Discharging size(mm)Max. Feeding size  (mm)Capacity(t/h)Power(kw)Weight(t)Overall size  (mm)
