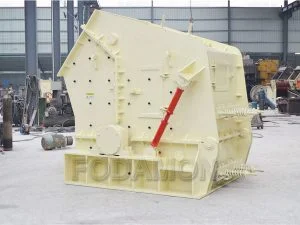

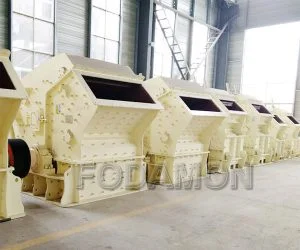

Impact Crusher

Impact crusher is a kind of machinery and equipment that widely applicated in ming industry.among the Crusher models , the impact crusher should belongs to a kind of crushing machine that are widely used , which is also essential production models in the higher line surface materials and high iron level aggregate , the diameter of the particle size it can handle are less than 500 mm. Its materials selecting is ideal for the granite, limestone and other materials.

If you want to learn more about our crusher and beneficiation equipment, Leave a Message!

Impact crusher adopts new manufacturing technology and unique structural design, and processes the finished products as cubes, without tension and crack. The particle shape is quite good. It can crush all kinds of coarse, medium and fine materials (granite, limestone, concrete, etc.) whose feeding particle size is not more than 500mm and compressive strength is not more than 350Mpa. It is widely used in all kinds of ore crushing, railway, highway, energy, water, etc Mud, chemical, construction and other industries. Its discharge particle size can be adjusted, and the crushing specifications are diversified. This series of impact crushers can deal with materials with side length of less than 100-500mm, and its compressive strength is up to 350Mpa. It has the advantages of large crushing ratio and cubic particles after crushing. It is suitable for crushing medium hard materials, such as limestone crushing in cement plant. It has the advantages of large production capacity and small discharging particle size.

The biggest disadvantages of this crushing machine lies in that the hammer plate and the impacting plate are very easy to be abraded, especially when crushing hard rocks, so that they should be regularly changed. At present due to the research and development of some anti-abrasion materials, this machine has been used in some metal dressing plants.

Features of Impact Crusher

Connected with locking sleeve assembly.
The blow bar with high chrome.
Impact plate with a special shape.
Crushed product with cubical shape.
Easy maintenance.
Reliable operation.

Impact Crusher Working Principle

The materials are crushed via impact energy produced in the impact crusher. When the materials enter the zone of the blow bar, they are flung into the impact equipments via the high speed impact of the blow bar, these materials will be re-crushed after rebounding into the impact plate, the process goes on until the materials are crushed to the required size and then will be discharged from outlet of impact crusher.

We all know that the crusher is widely used in mining, metallurgy, building materials, road, railway, water conservancy and chemical industry and many other sectors. Common crushing machines are winnowing mill, hammer crusher, impact crusher, double roll crusher, composite crusher. Jaw crusher, having large crushing ratio, uniform particle size, simple structure, reliable operation, easy maintenance, operating costs and economic characteristics. PF-I series impact crusher can process materials side length is 100 to 500 mm, the compressive strength is up to 350 MPa, the crushing ratio is great , the material particles was broken is cubic these advantages ; PF-II series impact crusher machine,whcih is suitable for crushing hard materials, such as cement crusher, with a production capacity of the material advantages of small particle size.

Since the above many characteristics, the impact crusher is very popular in the industrial machinery, and a kind of equipment that are frequently used.

If you want to learn more about our crusher and beneficiation equipment, Leave a Message!

Technical parameter of Impact crusher

Type(Model)Specifications(mm)Feed opening(mm)Max feeding side length(mm)Capacity(t/h)Power(kw)Total weight(t)Dimensions(LxWxH)(mm)

Note: This is just reference. Please contact us to get suitable solution and competitive price.
