Mobile Crushing Plant

Mobile Crushing plant is a kind of mobile crusher which integrates crushing, screening and feeding operation. It is widely used to process pebble, basalt, granite, limestone, quartz, construction waste, concrete, gold ore, iron ore, coal and other stone, ore and other minerals.

Applied materials: Construction waste, basalt, granite, fly ash, cement clinker, river pebbles, limestone, iron ore, bauxite, quartz sand, coal gangue, etc.

Applications: Metallurgical, chemical, building materials, electricity, transportation and other industrial sectors.


If you want to learn more about our crusher and beneficiation equipment, Leave a Message!

Types and advantages of mobile crushing plant

According to the different crushing materials, we have the existing production, Mobile Jaw CrusherMobile Sand Making MachineMobile Cone CrusherMobile Impact CrusherMobile Hammer CrusherMobile Vibrating screen, etc. Depending on the driving method, we have Rubber-Tyred Mobile Crushing Stations and Crawler-Type Mobile Crushing Stations. Tailor-made solutions for you.

Compared with the ordinary crusher, the mobile crusher station has the advantages of convenient movement, small floor area, direct site selection, and can be put into production when it is placed on the site. Another important feature is that the ordinary crusher transfers the raw materials to the crushing chamber of the crusher, between the feeder and the crusher through the belt conveyor placed on the ore surface, while the mobile crusher station The raw material feeder of crusher in the crushing station is close to each other, and the intermediate cross does not need the transmission of conveyor. The raw material of ore surface is directly transported to the feeding port of crusher by shovel, and the raw material will be injected into the crusher at a fixed speed, which not only reduces the unnecessary process, but also greatly reduces the unnecessary trouble in the speed and cost. Each crushing device in the crushing station Prepare to work back and forth until all raw materials are broken.

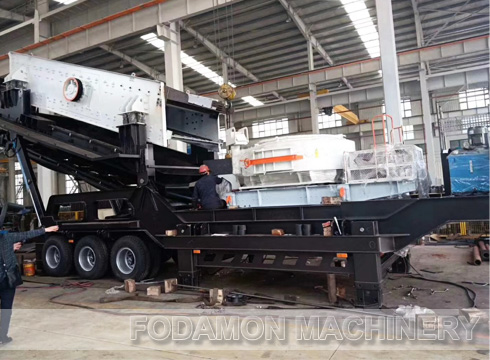

Mobile Jaw Crusher Plant

The tire crushing mobile crushing station is mainly composed of a feeder, a jaw crusher and a belt conveyor. The output of the machine is 85~650 tons per hour. The machine adopts an integrated group operation mode, which can be operated separately, eliminating the complex site infrastructure and auxiliary facilities installation work of the split components, and reducing the labor consumption. Suitable for coarse stone crushing, construction waste and so on.

Working Principle of Mobile Jaw Crusher Plant

The material is evenly conveyed into the crusher through the feeder. After the jaw crusher is initially crushed, the closed circuit system is formed by the circular vibrating screen to realize the cycle crushing of the material, and the finished material is output by the conveyor for continuous crushing operation. The tire crushing mobile crushing station can remove the circular vibrating screen according to the actual production needs, and realize the preliminary crushing of the material directly. It is convenient and flexible to operate with other crushing equipment.

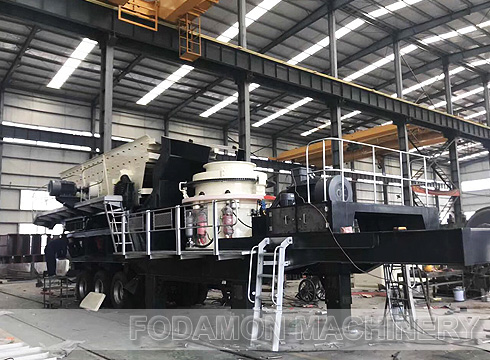

Mobile cone crushing plant

The tire cone crushing + vibrating screen moving crushing station is mainly composed of high-efficiency cone crusher, high-performance vibrating screen, belt conveyor, electric motor and control box. This machine is mainly used in the field of fine crushing operations. In the production of sand and gravel materials, it produces higher hardness and finer grain sand and gravel products according to different stone and finished products. The cone crusher can be adjusted to different crushing chamber types according to actual needs, and the field and scope of the medium crushing cone moving crushing station are expanded.

Advantages of Fodamon mobile cone crushing plant

  • The overall streamlined body structure design, metal paint spraying.
  • The machine is compatible with two kinds of crushing processes: “first crushed and then sieved” and “first sieved and then crushed”, and the adaptability is strong.
  • Strong mobility. The chassis is specially machined to suit not only the form of ordinary roads, but also the rugged roads of the crushing plant, making it easy to handle all kinds of harsh working environments.

  • The crushing cavity type can be adjusted, and the field of use and the scope of use are wide.
  • The entire unit is installed in one piece for convenience and flexibility.
  • Low noise and less dust.

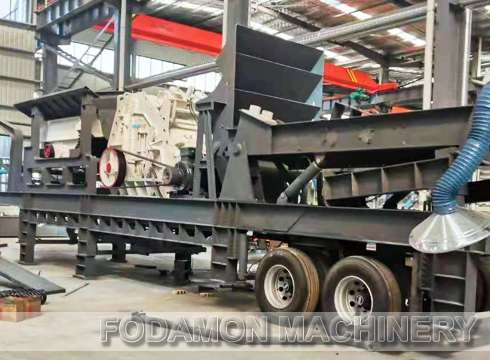

Mobile impact crushing plant

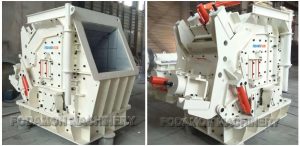

Tire mobile impact crushing plant is an integrated movable crushing equipment consisting of feeder, impact crusher, belt conveyor, etc., using good manufacturing technology, using high-quality high-chrome plate hammer, wear-resistant counter-liner, crushing ratio Large, coupled with the high-quality features of the impact crusher’s own finished product, the mobile crusher unit has a wider range of applications. It is especially suitable for small construction waste disposal and construction waste crushing in crushing sites.
