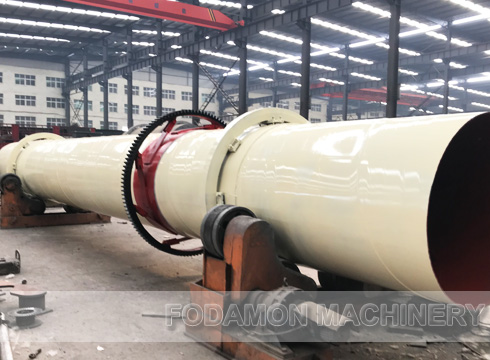

Rotary Dryer

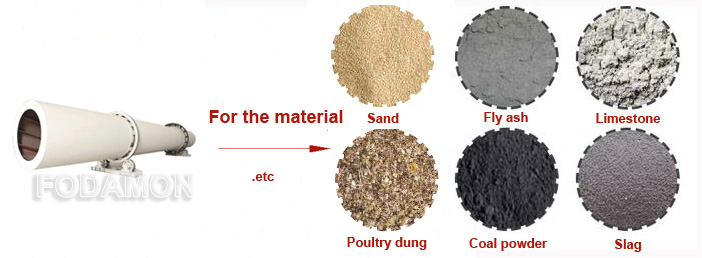

The rotary dryer is mainly used to dry materials with certain humidity. The dryer equipment has strong adaptability to materials and can dry various materials, and the equipment operation is simple and reliable. According to different processing materials, it can be divided into coal dryer, sand dryer, slag dryer, gypsum dryer, lignite dryer, sawdust dryer, etc. Users can choose the machine according to their own needs.
If you want to learn more about our crusher and beneficiation equipment, Leave a Message!
Type of Rotary Dryer
Fodamon® specializes in the production of large dryers, industrial dryers, etc., which are also called drum dryers, rotary dryers, etc. According to the different drying materials, they are also called cement dryers, slime dryers, sludge dryers, animal dung, bean dregs, palm dregs, desulfurization gypsum dryers, sand dryers, fly ash dryers, lignite dryers, etc. Dry mortar dryer and so on.
Rotary Dryer Working principle

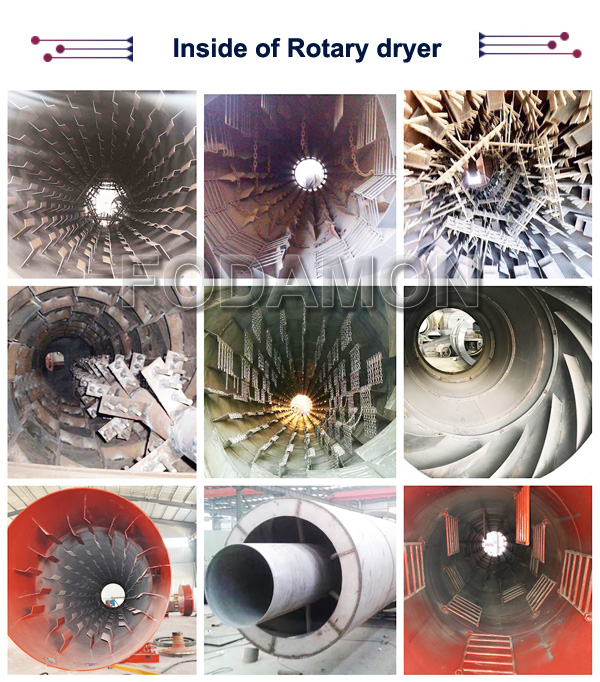

Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator.The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved.
If you want to learn more about our crusher and beneficiation equipment, Leave a Message!
If you want to learn more about our crusher and beneficiation equipment, Leave a Message!
Technical Parameter of Rotary Dryer
Model | Cylinder volume(m³) | Capacity(t/h) | Installation Angle(%) | Max. inlet temperature(℃) | Main power(kw) | Weight(t) |
---|---|---|---|---|---|---|
Φ1.2×8.0 | 9.0 | 1.9-2.4 | 3-5 | 700-800 | 7.5 | 9 |
Φ1.2×10 | 11.3 | 2.4-3.0 | 3-5 | 700-800 | 7.5 | 11 |
Φ1.5×12 | 21.2 | 4.5-5.7 | 3-5 | 700-800 | 15 | 18.5 |
Φ1.5×14 | 24.7 | 5.3-6.6 | 3-5 | 700-800 | 15 | 19.7 |
Φ1.5×15 | 26.5 | 5.7-7.1 | 3-5 | 700-800 | 15 | 20.5 |
Φ1.8×12 | 30.5 | 6.5-8.1 | 3-5 | 700-800 | 18.5 | 21.5 |
Φ1.8×14 | 35.6 | 7.6-9.5 | 3-5 | 700-800 | 18.5 | 23 |
Φ2.2×12 | 45.6 | 9.7-12.2 | 3-5 | 700-800 | 22 | 33.5 |
Φ2.2×14 | 53.2 | 11.4-14.2 | 3-5 | 700-800 | 22 | 36 |
Φ2.2×16 | 60.8 | 13.0-16.2 | 3-5 | 700-800 | 22 | 38 |
Φ2.4×14 | 63.3 | 13.5-16.9 | 3-5 | 700-800 | 37 | 45 |
Φ2.4×18 | 81.4 | 17.4-21.7 | 3-5 | 700-800 | 37 | 49 |
Φ2.4×20 | 90.4 | 19.3-24.1 | 3-5 | 700-800 | 45 | 54 |
Φ2.4×22 | 99.5 | 21.2-26.5 | 3-5 | 700-800 | 45 | 58 |
Φ2.6×24 | 127.4 | 27.2-34.0 | 3-5 | 700-800 | 55 | 73 |
Φ3.0×20 | 141.3 | 30.1-37.7 | 3-5 | 700-800 | 75 | 85 |
Φ3.0×25 | 176.6 | 37.7-47.1 | 3-5 | 700-800 | 75 | 95 |
Φ3.2×25 | 201 | 42.9-53.6 | 3-5 | 700-800 | 90 | 110 |
Φ3.6×28 | 285 | 60.8-76.0 | 3-5 | 700-800 | 160 | 135 |
Note: This is just reference. Please contact us to get suitable solution and competitive price.
